Everlast Welders 62i CNC Package

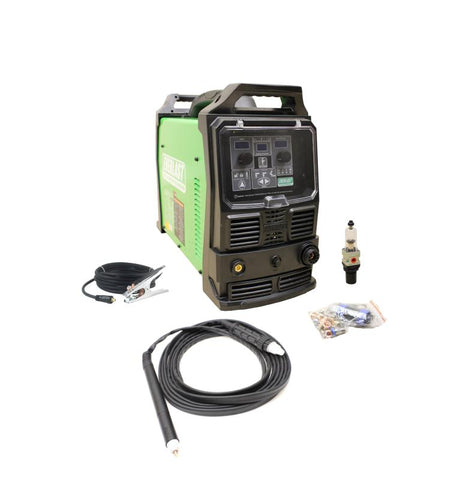

Finally, it is here — the proven PowerPlasma 62i is now available in a CNC-only package. This unit includes everything you need to get started with your plasma table, including a CNC port and CNC torch. It combines convenience, portability, and performance to suit everyone from the weekend enthusiast to welding and fabrication shops running small plasma tables.

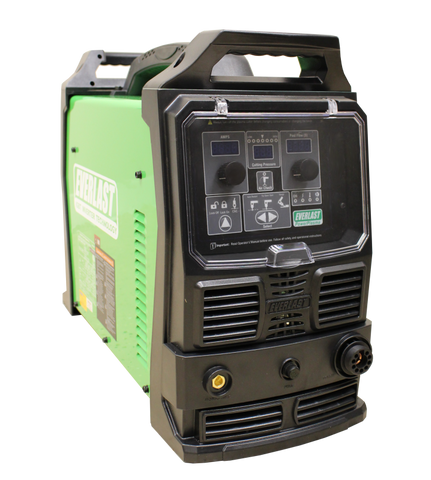

The PowerPlasma 62i is built on an inverter platform using IGBT technology, reducing weight while improving reliability and performance. The unit delivers plenty of cutting capacity, with a recommended cutting thickness of up to 10mm for regular use, and a maximum clean cut of up to 20mm (at reduced speeds). It can pierce up to 8mm for production cutting.

The new iPT 60M CNC torch comes standard and features a proven long-life Italian design with blow-back start, pilot arc, and a wide variety of consumable options. The PowerPlasma 62i also includes a 3-second tip saver function, reducing premature consumable wear by limiting pilot arc on-time when no cutting is taking place.

Features & Benefits:
  • Comes with 8m Straight CNC torch (Hand torch not included)
  • Easy starting with Blow Back Pilot arc allows easy cutting of rusty and painted metals
  • Cuts virtually any type of metal with ease
  • Simple to use torches with inexpensive service parts and consumables
  • Commercial class, 60% Duty cycle at 60 amps for CNC use
  • Clean, smooth cuts with the genuine iPTM 60 CNC torch
  • Blowback start starts arc without the need of High Frequency which can interfere with surrounding electronics
  • Pilot arc improves performance and cutting on dirty, painted, or rusted metals
  • 3 Second pilot arc tip saver feature shuts down pilot arc after 3 seconds of continuous operation if no cutting is present to prevent premature consumable wear

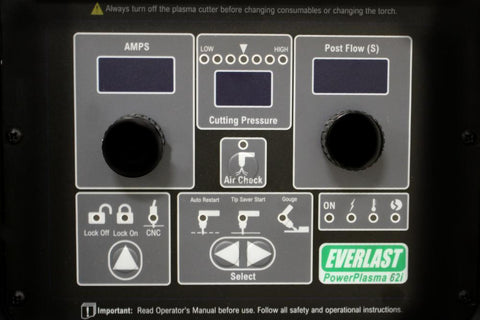

  • Front air pressure gauge allows quick verification of air pressure
  • Over Current and Duty Cycle protection indicates fault with a dedicated warning/diagnostic light, and shuts down output until condition is resolved
  • Adjustable postflow timer for maximum consumable life
  • IGBT components improve reliability and performance while reducing overall weight
  • CNC socket for CNC use on plasma tables with included machine torch
  • Suitable for use with 11,000 W "clean power" generators.

Tech Specs:

Type: IGBT

Voltage/phase: 220/240 V 1 Phase

Output Amp/Volt Range: 20-60A; 88-104V

OCV: 240V

Max Inrush ( I1MAX ) Amps: 41A

Maximum Rated (I1EFF ) Input Amps: 32.4A

Duty Cycle At Rated Amps/Volts:
  • 60% @ 60A/104V
  • 100% @ 50A/100V
Arc Start Type: Blow Back (Piston type)

Pilot Arc: Yes

Torch Type: Italian designed iPT 60 CNC machine torch

CNC Interface Port: Yes

Adjustable Post Flow Timer: Yes

Gouging: Light to Medium

Recommended Cutting Air Pressure: 75 psi

Recommended Compressor Capacity: 6CFM @ 90 psi/ 30 gallon tank

OK-to-Cut Indicator/Low Air pressure safety: YES

  • Never run on undersized extension cords.

    Please note: West OZ customers, remote and residential area delivery surcharge applies. Delivery will be to the customers nearest FEDEX pick up station for the customer to collect. If you want delivery to your house then email me for more info.

    This machine does not have a plug fitted. To achieve the maximum performance out of your Everlast Machine please ensure your current breaker and wiring/socket setup at your place of use is sufficient enough to achieve this. For example you may be required to upgrade your breaker to a 32A dedicated circuit to suit, therefore allowing you to achieve your machines full duty cycle. If in doubt please contact your local licensed electrician for more info prior to purchasing and please see terms and conditions/warranty for more information.

    Manufactured and compliant with IEC/AS 60974.10, CE Guaranteeing your electrical safety and performance. INDUSTRIAL USE ONLY
