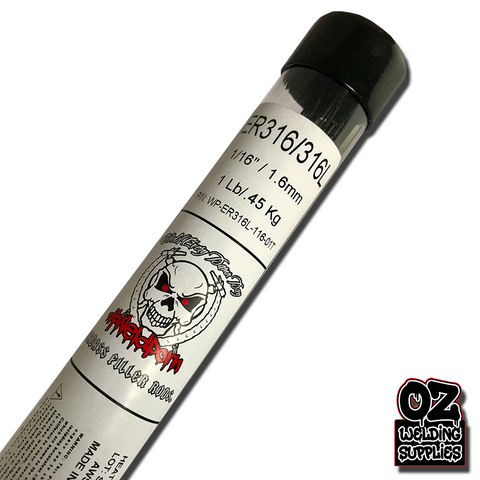

ER316/316L is used for welding types 316 and 316L stainless steels. It has a maximum carbon content of .03% to reduce the possibility of formation of inter-granular carbide precipitation. This low carbon alloy is not as strong as 316H at elevated temperatures. This filler metal is primarily used for welding low carbon molybdenum bearing austenitic alloys.
AWS Specification
AWS A5.9/A5.9M:2006
AWS Classification
ER316
ER316L
Welding Current
DCEP
Typical Wire Chemistry
C 0.08
Cr 18.0 – 20.0
Ni 11.0 – 14.0
Mo 2.0 – 3.0
Mn 1.0 – 2.5
Si 0.30 – 0.65
P 0.03
S 0.03
Cu 0.75
Typical Mechanical Properties
(As Welded)
Yield Strength, ksi 58
Tensile Strength, ksi 86
Elongation%, min, 36
Welding Positions
F,V,OH,H
Available Diameters MIG with
Operating Range in Amps
.023″ 35 – 70
.030″ 50 – 100
.035″ 160 – 210
.045″ 180 – 250
Available Diameters TIG with
Operating Range in Amps
.035″ 60 – 90
.045″ 80 – 110
1/16″ 90 – 130
3/32″ 120 – 175
1/8″ 150 – 220
5/32″ 170 – 350
