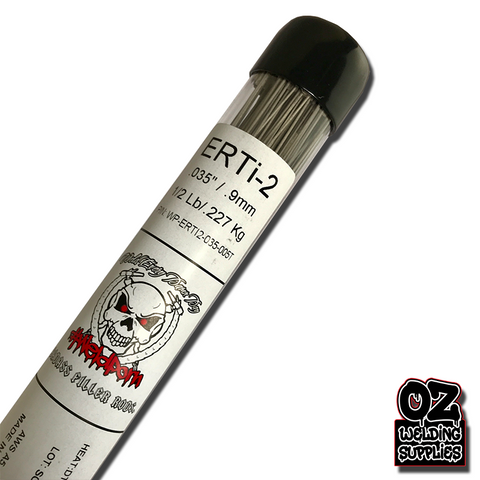

ERTi-2 (Commercially Pure) Titanium is a TIG, MIG and submerged arc filler metal used for
welding commercial pure titanium alloys commonly found in applications requiring high temperature resistance and resistance to chemical reagents. Although there are four grades of Commercial Pure Titanium filler metals, C.P. Grade 2 (ERTi-2) is the most popular because of its good balance of strength, formability and weldability. The most common applications of ERTi-2 are the aircraft industry, where tensile strength and weight ratios are very critical. Other uses would include cryogenic and petrochemical applications such as chemical process heat exchangers, pressure vessels and piping systems, pulp bleaching systems, electro chemical and chemical storage tanks.
AWS Specification
AWS A5.16/A5.16M:2007
AWS Classification ERTi-2
Welding Current
DCEP
Typical Wire Chemistry
C 0.03
O 0.08 – 0.16
H 0.008
N 0.015
Fe 0.12
Ti REM
Typical Mechanical Properties
(As Welded)
Yield Strength, ksi 40
Tensile Strength, ksi 50
Elongation%, min 20
Available Diameters and suggested
Operating Range in Amps
1/16″ 180
3/32″ 190
1/8″ 205
